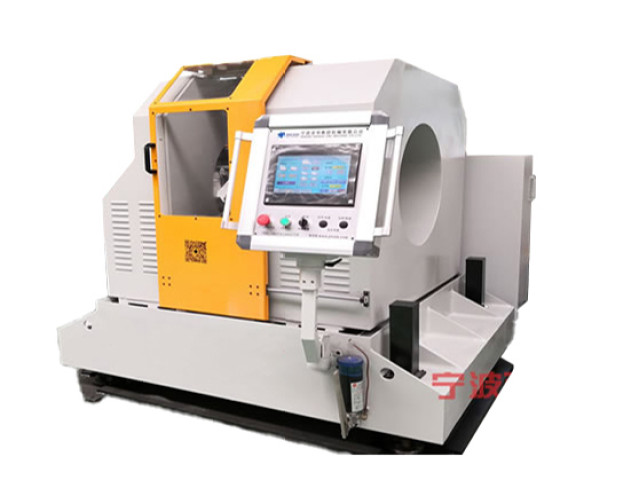

CTA 固定式切管坡口机

Model

Technical Parameter

CTA-6

CTA-12

CTA-16

CTA-24

CTA-32

CTA-40

  Working Range（mm）

Φ34-168（DN25-150)

Φ48-325（DN40-300)

Φ60-426（DN50-400)

Φ325-630（DN300-600)

Φ508-830（DN500-800)

Φ711-1020（DN700-1000)

Clamping Jaw

Main/Auxiliary Dual Clamping

Four-Jaw Self-Centering

Main/Auxiliary Dual Clamping

Four-Jaw Self-Centering

Main/Auxiliary Dual Clamping

Four-Jaw Self-Centering

Main/Auxiliary Dual Clamping

Six-Jaw Self-Centering

Main/Auxiliary Dual Clamping

Six-Jaw Self-Centering

Main/Auxiliary Dual Clamping

Eight-Jaw Self-Centering

Power

13.0KW

16.0KW

16.0KW

20.0KW

27.0KW

27.0KW

Pipe Material

Carbon steel, alloy steel, stainless steel, duplex stainless steel, low-temperature steel, heat-resistant steel

Working Thickness

Stainless steel, alloy steel：3-20mm，Carbon steel：3-25mm

Beveling Type

I-type, V-type, J-type, Compound-type

Servo Feed

Mitsubishi Servo Motor + High-Precision Planetary Reducer + Linear Guide

Tool Holder

Standard: Cutting tool holder(1set), beveling tool holder(2sets)

Optional: Cutting tool holder(2sets), beveling tool holder(2sets)

Clamping Method

Electrically actuated multi-jaw self-centering concentric clamping ensures uniform circumferential force distribution on the pipe. This design prevents deformation during the processing of thin-walled steel pipes, while also providing a certain degree of rounding correction for thin-walled pipes with excessive ovality.

*Clamping Jaw Layers

Two layers, with one layer mounted on the main unit's telescopic clamping jaws (no disassembly required). For pipe diameter adjustments within the machine's processing range, only one layer needs to be disassembled/installed. A slide-out mechanism enables rapid tooling change, with replacement time ≤5 minutes.

*Minimum Processable Pipe Length

CTA-6, CTA-12, CTA-16, CTA-24: 250mm

CTA-32, CTA-40: 300mm

*Minimum Finished Pipe Length

50mm (though length is theoretically unrestricted in principle).

Base Lifting System

The beveling machine is equipped with an integrated electric lifting base, enabling vertical height adjustment of the machining head. The system comprises:

l Motor reducer

l Four sets of ball screw actuators

l Transmission mechanisms

Base Lifting Method

Synchronized lifting via four ball screw actuators based on the pipe diameter.

Base Lifting Stroke

CTA-6≥150mm,others≥250mm

Base Lifting Speed

≥400mm/min

Tool Advance/Retract Control

Servo motor precisely controls tool movements: Rapid Feed

, Working Feed, Idle Feed, Rapid Retract, Equipped with Position Memory Function

Load Feed Speed (Working Feed)

Carbon Steel: ≤10mm/min, Stainless Steel/Alloy Steel: ≤6mm/min

Feed Rate

 0.05-0.5mm/r

*Idle Feed Speed (Rapid Advance/Retract)

≮300mm/min

Cooling Method

Cutting fluid circulation cooling

Processing Accuracy

Beveling Face Perpendicularity: ≤1mm, Surface Finish: ≤Ra6.3, Angular Deviation: ≤0.5°

Control System

Japanese Mitsubishi PLC CNC program for automatic control, with 10-inch human-machine interface (HMI) for input and display of processing parameters.

 *Specialized Program for Stainless Steel & Alloy Steel Processing

Embedded with proprietary processing programs developed by our company for stainless steel and alloy steel. Utilizes "Stepping Feed" technology, integrating Retract Control during feeding to achieve Chip Breaking & Evacuation, preventing chip entanglement, tool jamming, or blade chipping. Tool Life Enhancement: Over 3 times longer than conventional cutting/beveling machines.

Process Storage & Recall

Allows storage of optimized processing parameters in the system. Enables direct recall of programs for identical pipes in subsequent operations. Supports Preset, Store, Recall of processing programs.

Intelligent Parameter Auto-Search & Matching

Automatically searches and matches suitable processing parameters from the database after selecting material type and inputting pipe diameter/wall thickness, minimizing setup errors and operational risks.

Height Adjustment for Pipe Diameter Variation

Automatically adjusts the tool head’s center height based on preset pipe diameter to ensure alignment with the pipe axis, accommodating height variations across different pipe sizes.

Operational Simplicity

User-friendly design with minimal learning curve. Requires only basic parameter input to initiate processing.

*Optional

□ Automatic Chip Conveyor & Collection Cart
□ Pipe Conveying Roller Bed
□ Raw Pipe Auto-Loading System
□ Finished Pipe Auto-Unloading System
□ Residual Pipe Auto-Unloading System
□ Pipe Storage Rack
□ CNC Pipe Length-Measuring & Conveying System
□ Short Pipe Auto-Ejecting Robotic Arm
□ Full-Bundle Pipe Lifting/Loading Machine
□ Pneumatic/Laser Online Marking System
□ Industrial PC & Nesting Software
□ MES System Communication Module (Data Acquisition & Transmission)

Drive

3-Phase 5-Wire 380V±10%, 50Hz
